LC58-7 - Swivel Flange, 32mm (1-1/4")

ex VAT £20.40 inc VAT £24.48
plus minus
Model: LC58-7

Product Description

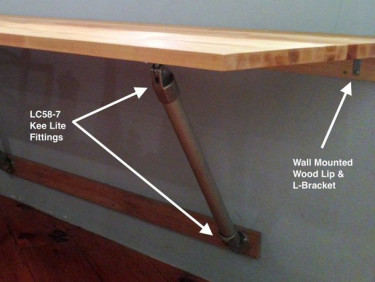

A swivel fitting for attachment of angled tube to a flat surface. See type LM58 and LF50 for measurements. Note: This fitting is not recommended for use as a base flange to support guardrail or balustrades.

Technical Data

Show in Imperial Show in Metric
LC58 [tech]
LC58 Drawing [tech]
Model Measurements (in.) Weight (lbs.)
Model Measurements (mm) Weight (kgs)
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.

Pipe Size Chart

The chart below will help you understand how to match the size of fittings and pipe.

Pipe Fittings Size Chart

Additional Information

Dimensional Weight (kgs) 0.4000
Actual Weight (kgs) 0.4
Manufacturer Kee Safety
Brand Kee Lite
Material Aluminium
Loads A Kee Lite component (size 6 to 9) can support an axial load of 800Kg. per set screw with the set screw tightened to a torque of 39Nm (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
Standards Not Applicable
Alt. Mfgr. Model Number 4KA82
