Product Description

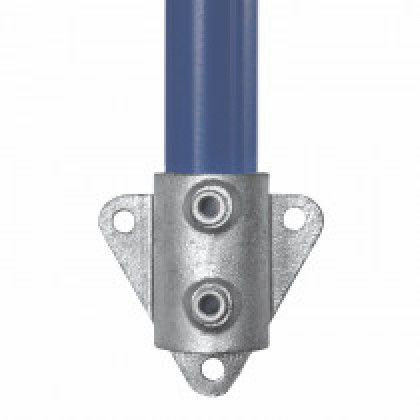

Side fixing for guardrail and balustrades to walls, parapets, steps, and ramps. Upright cannot drop through socket.
Should an upright be required to pass through the fitting, the base can be bored out at an additional cost upon request.
Also used for DDA compliant railing.
Technical Data
Imagery
![68 [tech]](https://simplifiedbuilding.co.uk/media/catalog/product/cache/4/thumbnail/130x/9df78eab33525d08d6e5fb8d27136e95/i/m/image_599.jpg "68 [tech]")
![68 [tech]](https://simplifiedbuilding.co.uk/media/catalog/product/cache/4/thumbnail/130x/9df78eab33525d08d6e5fb8d27136e95/i/m/image_599_1.jpg "68 [tech]")
| Model | Measurements (in.) | Weight (lbs.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø | A | D | E | F | G | H | J | K | L | ||
| 68-8 | 0.43 | 1.90 | 3.07 | 2.36 | 3.50 | 3.39 | 1.22 | 4.37 | 4.05 | 1.00 | 2.09 |
| Model | Measurements (mm) | Weight (kgs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø | A | D | E | F | G | H | J | K | L | ||
| 68-8 | 11.00 | 40.00 | 78.00 | 60.00 | 89.00 | 86.00 | 31.00 | 111.00 | 103.00 | 25.00 | 0.95 |
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
3D Model
Click (hold mouse button down) and Drag to rotate the three dimensional image.
Additional Information
| Dimensional Weight (kgs) | 0.9500 |
|---|---|
| Actual Weight (kgs) | 0.95 |
| Manufacturer | Kee Safety |
| Brand | Kee Klamp |
| Material | Ductile Iron to BS EN 1563 |
| Loads | A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1) |
| Set Screw | Case hardened steel, Kee Koat corrosion resistant coating |
| Standards | ASTM A47-77-32510, BS EN ISO 1461 |
| Alt. Mfgr. Model Number | 4NXW2 |
