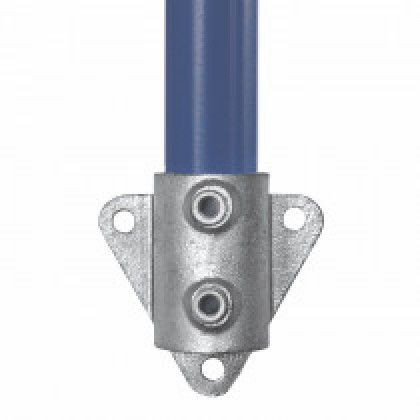

Kee Klamp 68-6 – Wall Flange (33.7mm O/D)
Secure side fixing for guardrails and balustrades to walls, parapets, steps, and ramps. Designed to work with 33.7mm (Size 6) tube, this Kee Klamp fitting features a closed socket that prevents the upright from passing through the base, ensuring a safe and stable termination point.
If your project requires the upright to pass through, the base can be factory bored out at an additional cost.
Commonly used in modular railing systems, this fitting is part of our range of Kee Klamp pipe fittings, offering a strong, corrosion-resistant connection without the need for welding or threading.
Technical Data
Imagery
![68 [tech]](https://simplifiedbuilding.co.uk/media/catalog/product/cache/4/thumbnail/130x/9df78eab33525d08d6e5fb8d27136e95/i/m/image_597.jpg "68 [tech]")
![68 [tech]](https://simplifiedbuilding.co.uk/media/catalog/product/cache/4/thumbnail/130x/9df78eab33525d08d6e5fb8d27136e95/i/m/image_597_1.jpg "68 [tech]")
| Model | Measurements (in.) | Weight (lbs.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø | A | D | E | F | G | H | J | K | L | ||
| 68-6 | 0.43 | 1.32 | 2.48 | 1.77 | 3.03 | 2.80 | 0.94 | 3.78 | 3.46 | 1.00 | 1.37 |
| Model | Measurements (mm) | Weight (kgs) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø | A | D | E | F | G | H | J | K | L | ||
| 68-6 | 11.00 | 25.00 | 63.00 | 45.00 | 77.00 | 71.00 | 24.00 | 96.00 | 88.00 | 25.00 | 0.62 |
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
3D Model
Click (hold mouse button down) and Drag to rotate the three dimensional image.
Additional Information
| Dimensional Weight (kgs) | 0.6200 |
|---|---|
| Actual Weight (kgs) | 0.62 |
| Manufacturer | Kee Safety |
| Brand | Kee Klamp |
| Material | Ductile Iron to BS EN 1563 |
| Fitting Function | Flange |
| Loads | A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1) |
| Set Screw | Case hardened steel, Kee Koat corrosion resistant coating |
| Standards | ASTM A47-77-32510, BS EN ISO 1461 |
| Alt. Mfgr. Model Number | 4NXR8 |
