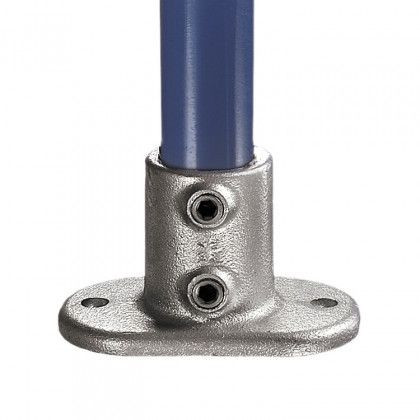

Ideal when a structural fixing is required. When fixing guard railing and balustrades, Type 62 should always be used. The holes are of sufficient diameter to insure proper fixing with either a mechanical or chemical anchor. The two set screws in the vertical socket give greater side load stability to the upright. It is recommended that the fixing holes in the flange should be in line with the applied load. Used for DDA compliant railing.
|Model||Measurements (in.)||Weight (lbs.)|
|Model||Measurements (mm)||Weight (kgs)|
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
Click (hold mouse button down) and Drag to rotate the three dimensional image.
|Dimensional Weight (kgs)||1.2600|
|Actual Weight (kgs)||1.26|
|Material||Ductile Iron to BS EN 1563|
|Loads||A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1)|
|Set Screw||Case hardened steel, Kee Koat corrosion resistant coating|
|Standards||ASTM A47-77-32510, BS EN ISO 1461|
|Alt. Mfgr. Model Number||4NXW1|
