40-9 - Four Socket Cross, 51mm (2")

ex VAT £36.00 inc VAT £43.20
plus minus
Model: 40-9

Product Description

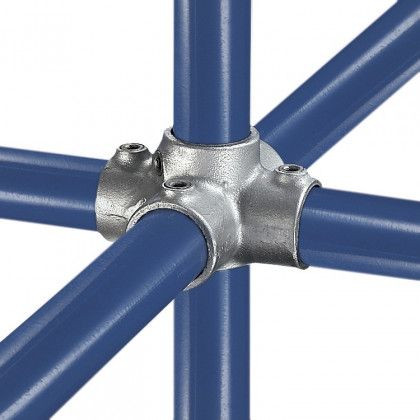

Most frequently used in multiple upright structures to tie a centre upright with horizontal tubes in four directions. The upright passes through the fitting.

Technical Data

Show in Imperial Show in Metric
Imagery
40 [tech]
40 [tech]
40 [tech]
Model Measurements (in.) Weight (lbs.)
ADE
40-92.382.446.615.07
Model Measurements (mm) Weight (kgs)
ADE
40-950.0062.00168.002.30
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.

Pipe Size Chart

The chart below will help you understand how to match the size of fittings and pipe.

Pipe Fittings Size Chart

Additional Information

Dimensional Weight (kgs) 2.3000
Actual Weight (kgs) 2.3
Manufacturer Kee Safety
Brand Kee Klamp
Material Ductile Iron to BS EN 1563
Fitting Function Cross
Loads A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
Standards ASTM A47-77-32510, BS EN ISO 1461
