Product Description
Outlet Tee (30° to 45°) fitting designed for the mid rail on guardrail on slopes and staircases between 30° and 45° at the junction where the handrail changes from level to sloping down the stairs.
Technical Data

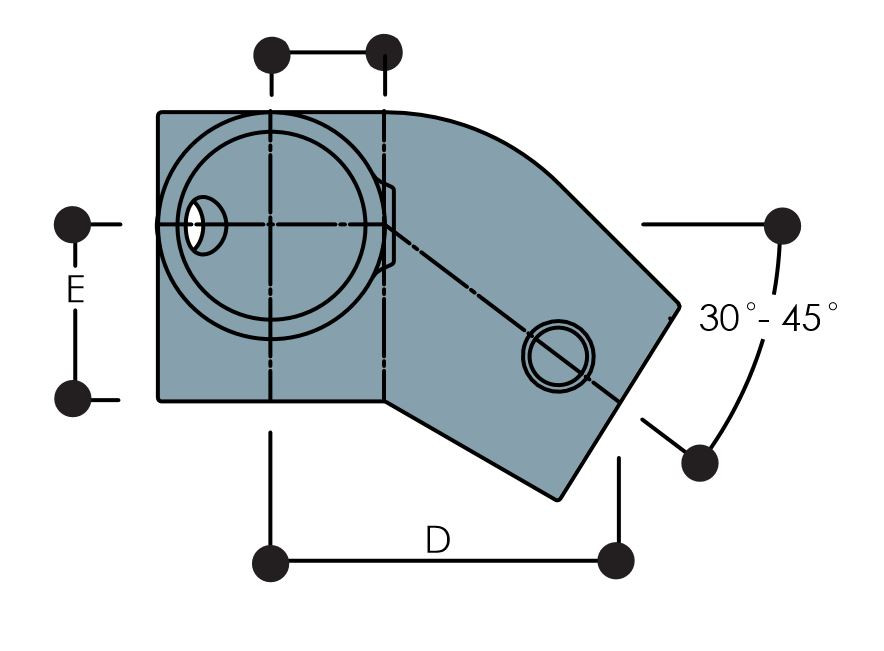

Imagery
| Model | Measurements (in.) | Weight (lbs.) |
|---|---|---|
| 321RH-7 | ||
| 321RH-8 | ||
| 321LH-7 | ||
| 321LH-8 |
| Model | Measurements (mm) | Weight (kgs) | |||
|---|---|---|---|---|---|
| A | D | E | F | ||
| 321RH-7 | 32.00 | 86.00 | 27.00 | 29.00 | 0.96 |
| 321RH-8 | 40.00 | 92.00 | 30.00 | 32.00 | 1.12 |
| 321LH-7 | 32.00 | 86.00 | 27.00 | 29.00 | 0.96 |
| 321LH-8 | 40.00 | 92.00 | 30.00 | 32.00 | 1.12 |
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
Additional Information
| Brand | Kee Klamp |
|---|---|
| Material | Ductile Iron to BS EN 1563 |
| Set Screw | Case hardened steel, Kee Koat corrosion resistant coating |
| Standards | ASTM A47-77-32510, BS EN ISO 1461 |
