316 - Angled Parapet Railing Base

Select Models

Price Model Fits Tube Qty
ex VAT £41.07 inc VAT £49.28
316-7 OD: 42.4mm
NB: 32mm
plus minus
ex VAT £44.86 inc VAT £53.83
316-8 OD: 48.3mm
NB: 40mm
plus minus
Model: 316

Product Description

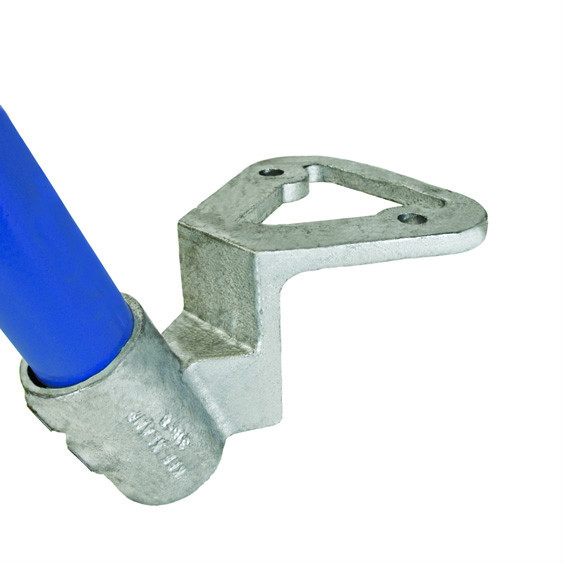

A component designed to retrofit roof parapets that are an unsafe height. Rail anchor is angled 25 degrees from the vertical so that the building’s visage is unaffected by the implemented railing. Two holes are located in the top mounting bracket for fixing directly into the parapet. The two set screws in the vertical socket give greater side-load stability to the angled upright. Engineered weep hole allows water to drain.

Additional Information

Material Ductile Iron to BS EN 1563
Loads All Kee components (size 5 to 9) can support an axial load of 907Kg. per set screw with the set screw tightened to a torque of 39n/m. (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
