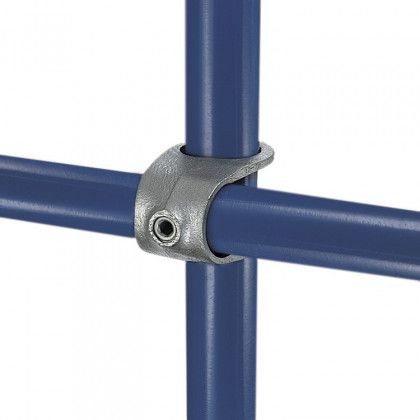

Designed to provide a 90° cross-over joint. Can be added to an existing structure. tube should not be joined within this fitting. For an alternative fitting, see Type 45 or Type A45.
|Model||Measurements (in.)||Weight (lbs.)|
|Model||Measurements (mm)||Weight (kgs)|
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
Click (hold mouse button down) and Drag to rotate the three dimensional image.
|Dimensional Weight (kgs)||0.9000|
|Actual Weight (kgs)||0.9|
|Material||Ductile Iron to BS EN 1563|
|Loads||A Kee Klamp component (size 5 to 9) can support an axial load of 2000 lbs. per set screw with the set screw tightened to a torque of 29 lbs/ft. (rating includes a safety factor of 2:1)|
|Set Screw||Case hardened steel, Kee Koat corrosion resistant coating|
|Standards||ASTM A47-77-32510, BS EN ISO 1461|
