570 - Wall Mounted Handrail Bracket

Select Models

Price Model Fits Tube Qty
ex VAT £14.09 inc VAT £16.91
570-7 OD: 42.4mm
NB: 32mm
plus minus
Model: 570

Product Description

The Kee Access DDA Railing System is a cost effective handrail installation suitable for stairs, ramps or walkways that conform to the railing requirements of the Disability Discrimination Act (DDA). DDA railing is a framework of horizontal rails supported by vertical uprights (posts), assembled from fittings and tube. This type of railing provides a contiguous gripping surface throughout its entire length.

The modular Kee Access Railing fittings securely join standard sizes of schedule 40 Galvanised steel tube and is flexible enough to accommodate most variations between design drawings and site requirements. The system does not require any drilling, welding or threading, and is easily assembled without specialized workers or equipment. All fittings are Galvanised for low long-term maintenance and can be powder coated to your choice of RAL Colours

Please note: in order for handrailing to fully comply to the DDA regulations, the system needs to be colour coated. To have this fitting colour coated please call for a quote.

Technical Data

Show in Imperial Show in Metric
Imagery
570 [tech]
570 [tech]

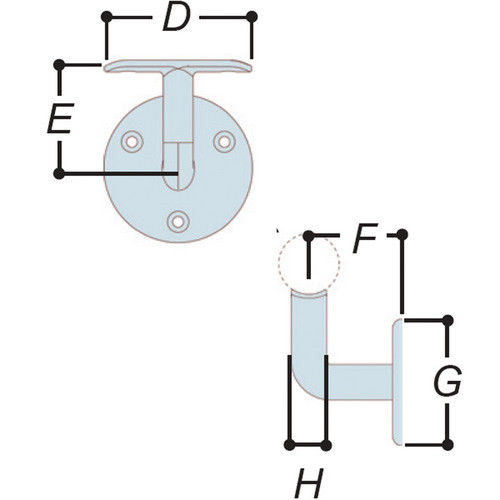

Model Measurements (in.) Weight (lbs.)
ØADEFGH
570-70.281.153.462.483.233.540.981.48
Model Measurements (mm) Weight (kgs)
ØADEFGH
570-77.0032.0088.0063.0082.0090.0025.000.67
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.

Pipe Size Chart

The chart below will help you understand how to match the size of fittings and pipe.

Pipe Fittings Size Chart

Additional Information

Brand Kee Access
Material Ductile Iron to BS EN 1563
Fitting Function DDA
Loads A Kee Access component can support an axial load of 800Kg. per set screw with the set screw tightened to a torque of 39Nm (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
Standards BS EN ISO 1461
