Requires one 514-7 internal coupling to attach to 42mm (1.66") O.D. tube (32mm (1-1/4") Schedule 40 tube with a 42mm (1.66") O.D.)
The Kee Access DDA Railing System is a cost effective handrail installation suitable for stairs, ramps or walkways that conform to the railing requirements of the Disability Discrimination Act (DDA). DDA railing is a framework of horizontal rails supported by vertical uprights (posts), assembled from fittings and tube. This type of railing provides a contiguous gripping surface throughout its entire length.
The modular Kee Access Railing fittings securely join standard sizes of schedule 40 Galvanised steel tube and is flexible enough to accommodate most variations between design drawings and site requirements. The system does not require any drilling, welding or threading, and is easily assembled without specialized workers or equipment. All fittings are Galvanised for low long-term maintenance and can be powder coated to your choice of RAL Colours

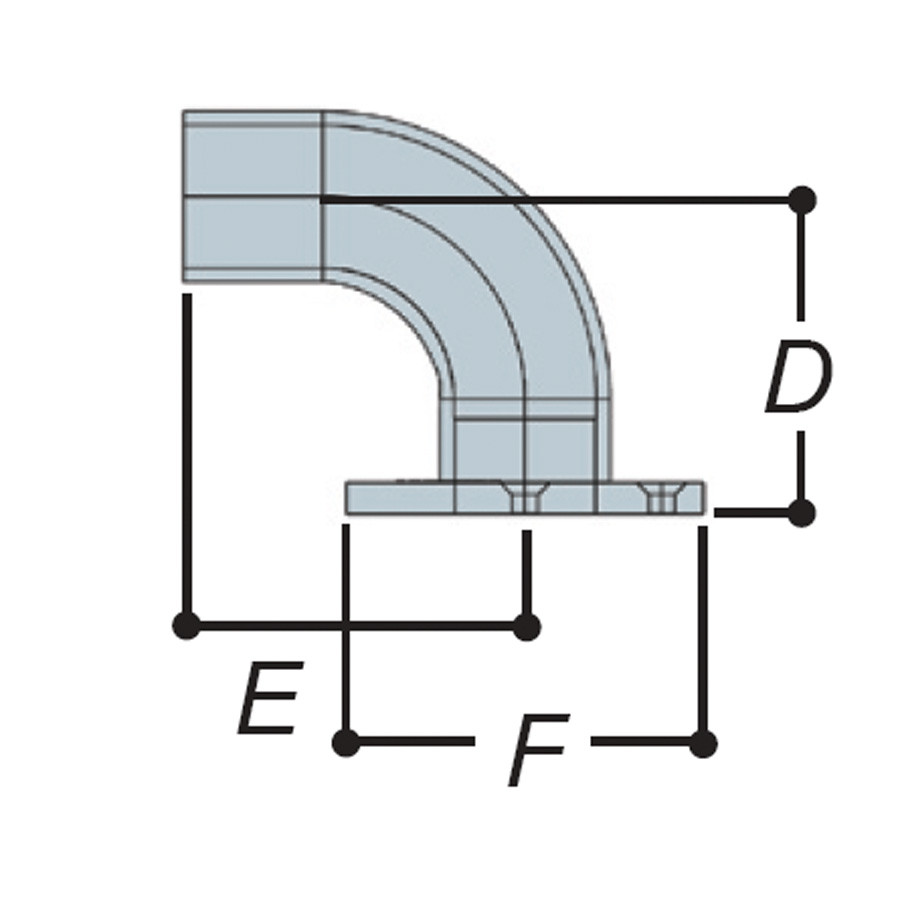

|Model||Measurements (in.)||Weight (lbs.)|
|Model||Measurements (mm)||Weight (kgs)|
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
|Material||Ductile Iron to BS EN 1563|
|Loads||A Kee Access component can support an axial load of 800Kg. per set screw with the set screw tightened to a torque of 39Nm (rating includes a safety factor of 2:1)|
|Set Screw||Case hardened steel, Kee Koat corrosion resistant coating|
|Standards||BS EN ISO 1461|
