515-7 - 90° Split Elbow

Select Models

Price Model Fits Tube Qty
ex VAT £14.88 inc VAT £17.86
515-7 OD: 42.4mm
NB: 32mm
plus minus
Model: 515

Product Description

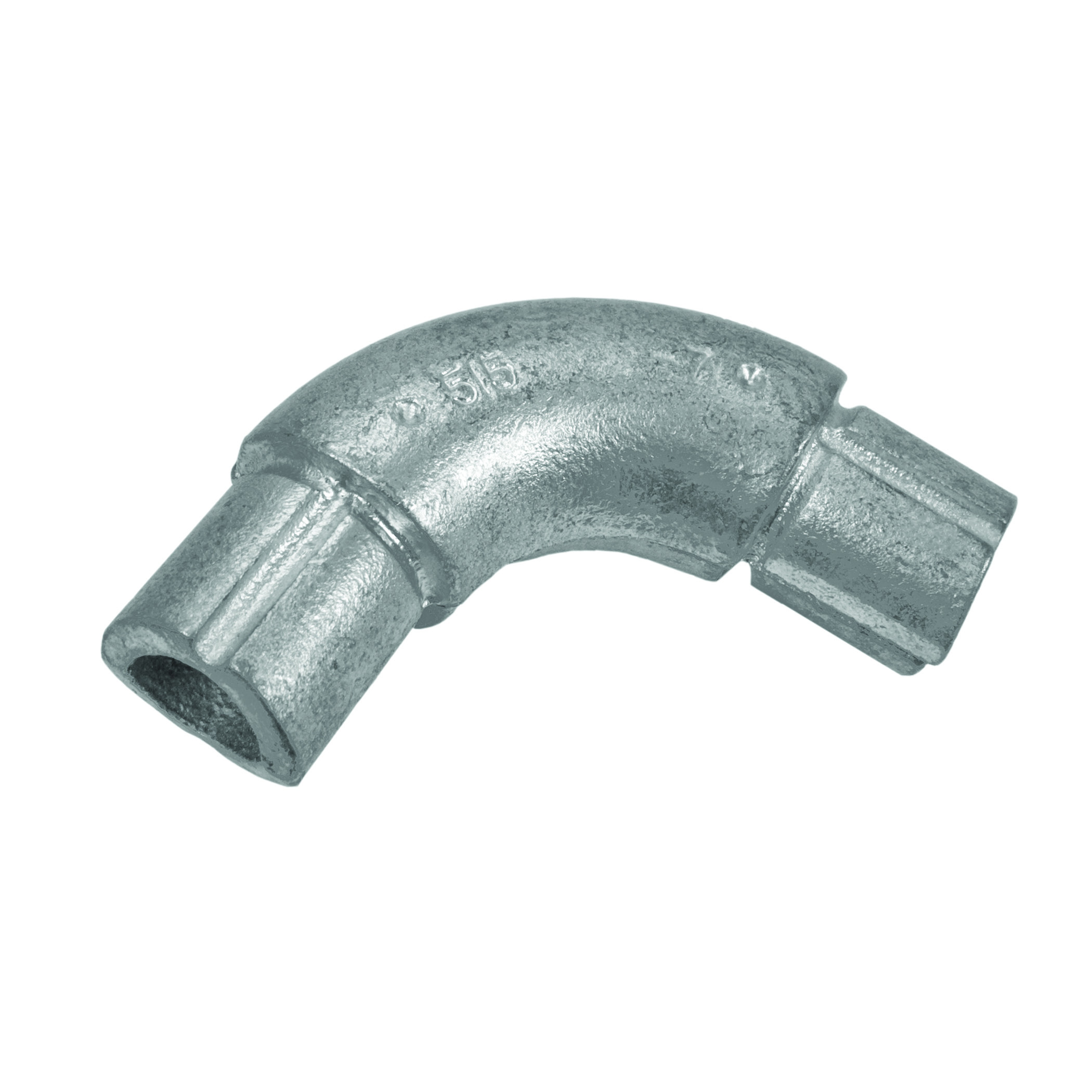

A 90° corner elbow consisting of two separate pieces, 515-7T and 515-7B. which are joined by a centrally positioned screw. The combined fitting is positioned with the ends inside the adjoining handrails and the outer grubscrews tightened. This forces the halves apart, gripping the inside of the tube. The central screw is then tightened, locking the fitting in place .

Additional Information

Material Ductile Iron to BS EN 1563
Loads All Kee components (size 5 to 9) can support an axial load of 907Kg. per set screw with the set screw tightened to a torque of 39n/m. (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
