10-848 - Single Handrail Socket

ex VAT £12.54 inc VAT £15.05
plus minus
Model: 10-848

Product Description

A tee component used for new builds as an interface between uprights and the Kee Access fitting. For upgrading size 7 and size 8 systems see A10-748 and A10-848.

Please note: in order for handrailing to fully comply to the DDA regulations, the system needs to be colour coated. To have this fitting colour coated please call for a quote.

Technical Data

Show in Imperial Show in Metric
Imagery

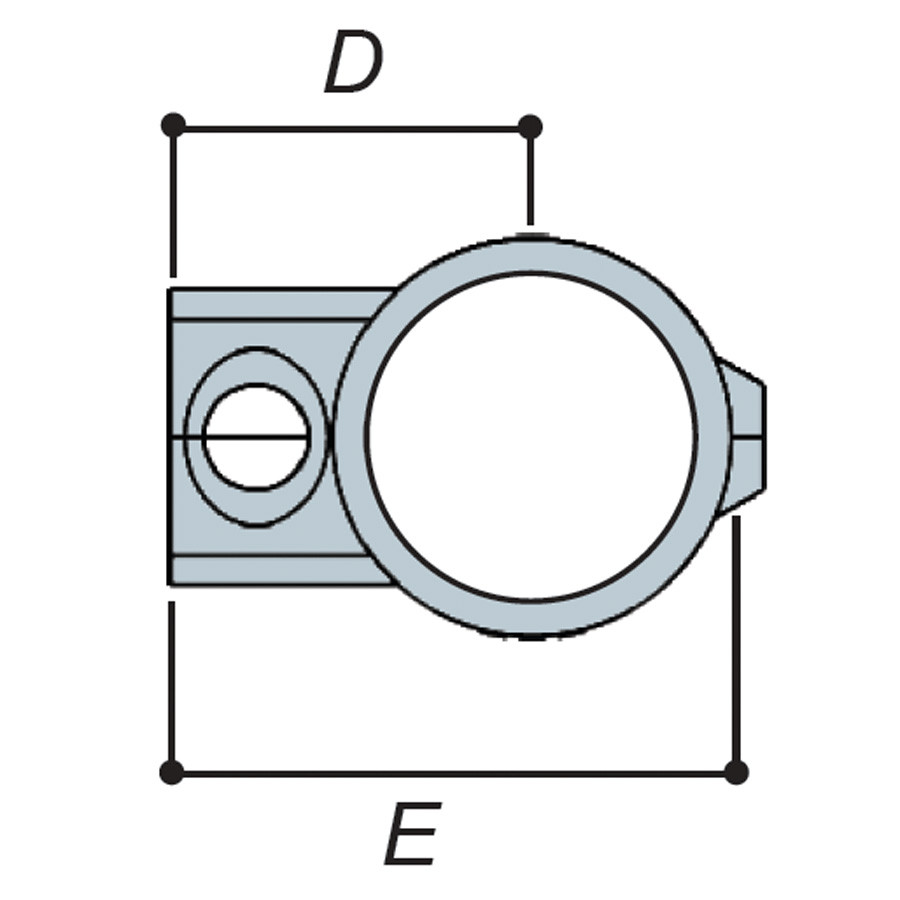

Model Measurements (in.) Weight (lbs.)
ADE
10-8481.902.173.350.84
Model Measurements (mm) Weight (kgs)
ADE
10-84840.0055.0085.000.38
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.

Pipe Size Chart

The chart below will help you understand how to match the size of fittings and pipe.

Pipe Fittings Size Chart

Additional Information

Dimensional Weight (kgs) 0.3800
Actual Weight (kgs) 0.38
Manufacturer Kee Safety
Brand Kee Access
Material Ductile Iron to BS EN 1563
Fitting Function DDA, Tee / Socket
Loads A Kee Access component can support an axial load of 800Kg. per set screw with the set screw tightened to a torque of 39Nm (rating includes a safety factor of 2:1)
Set Screw Case hardened steel, Kee Koat corrosion resistant coating
Standards BS EN ISO 1461
