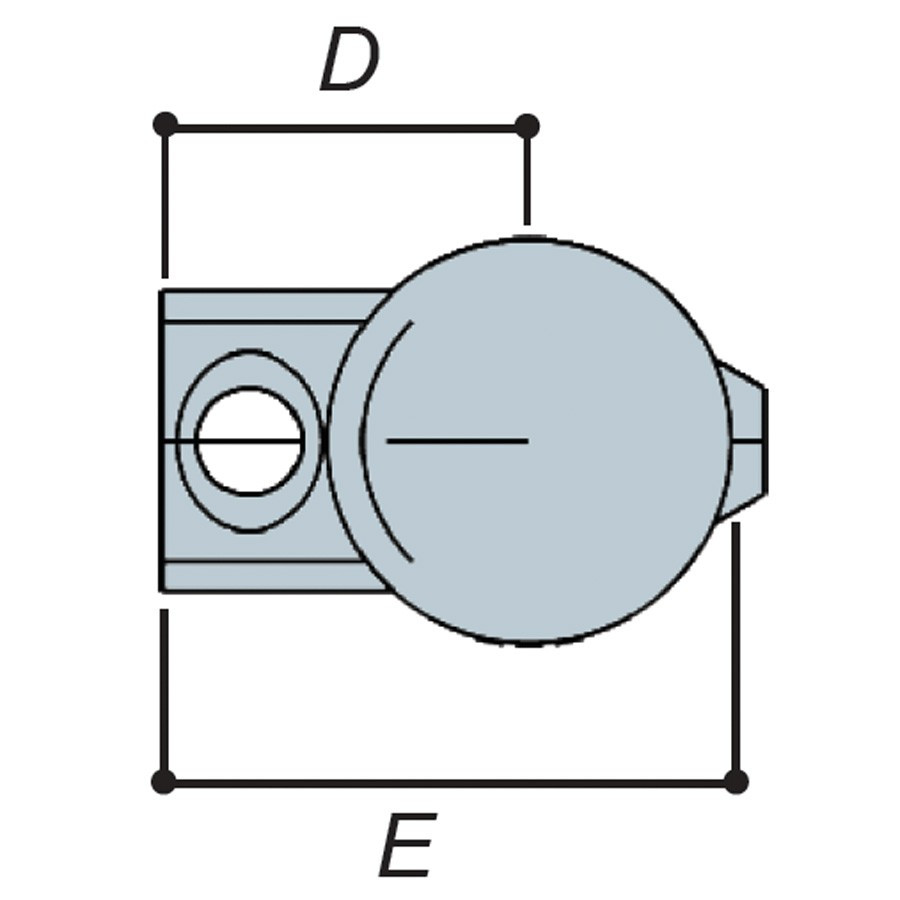

Capped 90 degree socket Tee, for attaching 518-7 or 575-7 handrail bracket to 48.3 od upright tubes. For upgrading size 7 and size 8 systems see A10-748 and A10-848.
|Model||Measurements (in.)||Weight (lbs.)|
|Model||Measurements (mm)||Weight (kgs)|
References A, B, C refer to the Outer Diameter of the pipe that fits inside the fitting.
Pipe Size Chart
The chart below will help you understand how to match the size of fittings and pipe.
Click (hold mouse button down) and Drag to rotate the three dimensional image.
|Dimensional Weight (kgs)||0.3800|
|Actual Weight (kgs)||0.38|
|Material||Ductile Iron to BS EN 1563|
|Fitting Function||DDA, Tee / Socket|
|Loads||A Kee Access component can support an axial load of 800Kg. per set screw with the set screw tightened to a torque of 39Nm (rating includes a safety factor of 2:1)|
|Set Screw||Case hardened steel, Kee Koat corrosion resistant coating|
|Standards||BS EN ISO 1461|
