Wall Mounted Handrail - Offset (SR-570)

As low as: ex VAT £48.86 inc VAT £58.63

Configuration

Typically ship in
2-3 Business Days

Price as configured: ex VAT £0.00 inc VAT £0.00

plus minus
Model: SR-570UK

Product Description

SR-570 is a simple handrail kit designed to mount to a wall or wooden posts. The steel tube sits on top of the wall brackets (rather than sliding through them), creating a smooth, continuous handrail.

A handrail kit suitable for mounting on walls or wooden posts

This is a versatile handrail that mounts to flat walls or wooden posts. It uses brackets that help the tube sit on top of them (rather than sliding though these), thus creating a smooth continuous grab surface. Available in a silver galvanised steel finish.

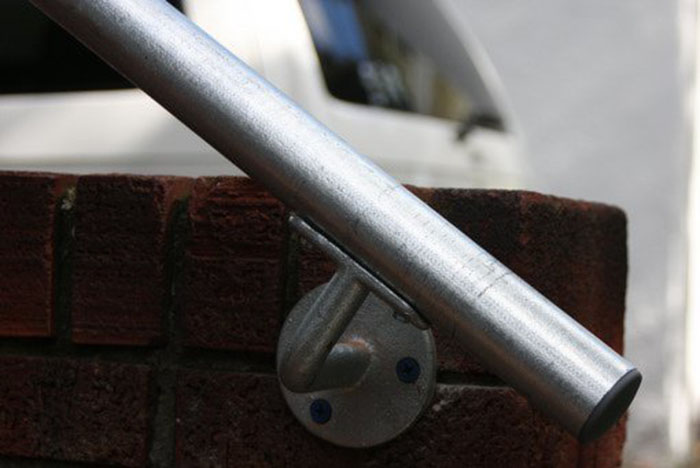

outdoor handrail mounted onto brick
outdoor handrail mounted on a wall

Perfect for outdoor use

This handrail kit uses industrial strength galvanised steel tube and fittings. This means that the structure will withstand even the harshest weather conditions, with no signs of corrosion.

Our rail will ensure that you have a sturdy surface to grab onto anytime you go out in the garden or leave the house.

Designed to last decades

This is not a flimsy handrail that you need to replace often. When installed, you can rest assured that it will be there for you whenever you need it. Using industrial strength tube and fittings, the rail is designed to last decades without rusting or bending.

heavy duty handrail kit for outdoors

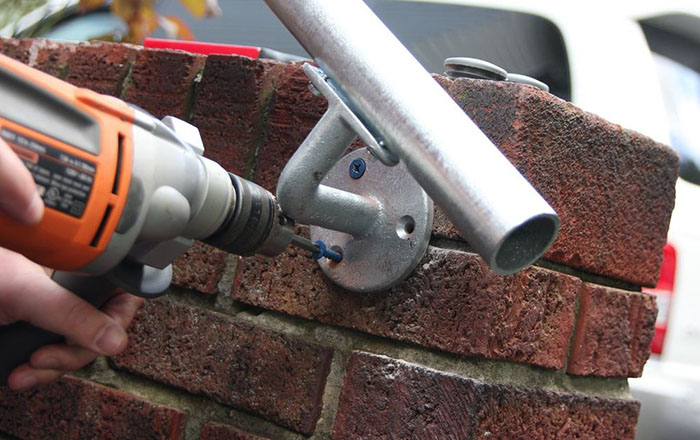

handrail kit - quick and easy installation

Quick and easy installation

The tube attaches to the wall brackets using self-tapping screws (available to purchase with the kit). This rail requires minimal drilling into the tube. The entire system then needs to be attached to a wall or posts using suitable fixings (not provided with the kit). A typical installation should not take longer than an hour.

Not the handrail you are looking for?

Let our team help you design a rail that suits your requirements! We use galvanised steel or aluminium uprights to build sturdy rails that will help you gain access to your home or garden. Just get in touch with our team!

custom adjustable handrail kit for your garden

Kit contents

The SR-570 handrail kit includes all the tube and fittings you require to put the rail together. An allen key is also included with the kit. Fixings (screws and bolt) are not provided.

Size 7 - 42.4 O/D Galvanised Tube
Size 7 - 42.4 O/D Galvanised Tube
Custom length grab rail Qty: 1
570-7 - Wall Mounted Handrail Bracket 32mm (1-1/4")
570-7 - Wall Mounted Handrail Bracket 32mm (1-1/4")
Qty: 2
Plastic Plug
Plastic Plug
Qty: 2

What you need to know

How do I measure correctly?

Remember what your Dad told you? 'Measure Twice, Cut Once' You know the the phrase!

Figuring out the measurements for your handrail requires some attention to detail. There are two ways to figure it out the dimension for your grab rail and how you do it probably depends on how much you like maths.

This simple way to do this is to have someone stand at the bottom of the steps holding the end of the measuring tape. Walk to the top of the stairs while each of you hold the measuring tape 1m off the ground. Record the length when you have positioned the ends where you want the rail to begin and end.

The mathematical way of calculating would be to measure the rise and run of the steps and then calculate the length of the railing by the following formula:

Railing Length = √ height2 + length2

The square root of the height squared plus the length squared will give you the proper length of your rail.

What sort of prepping do I need to do?

Whether you are mounting to the wall or to ground, be sure that the area is cleaned so that it can receive the base flange or railing bracket without obstruction.

What hardware do I need to install this rail?

What hardware to use when installing a Kee Klamp handrail

For installing this rail, you will need the following additional items (not included with the kit):

  • For attaching the rail to the uprights: Self-tapping screws
  • For mounting the rail onto wood: 6 x Multi purpose Pozi screws + 6 x Plastic contract wall plugs
  • For mounting the rail onto concrete / brick: 6 x Masonry screws

Download the 'Hardware instructions sheet' for more information

What do I need to do before installing the handrail?

Recommended tools

  • Allen key (included with the handrail kits)
  • Rubber mallet / Hammer (for plugs)
  • Drill / Hammer drill
  • Wrench

Installation tips

  • Confirm that you have all required parts.
  • When installing plugs, place rag or cardboard over plug and gently hammer into place.
  • If installing into concrete or brick, vacuum out debris from drilled out holes before inserting sleeve anchors.
  • If you plan on painting your rail, do so before assembling.

How do I mount base flanges?

Anchoring to concrete or masonry

  • Align flange and mark holes - Set the base flanges where they need to go and mark the holes with a marker.
  • Dimple holes with a nail set - Before drilling, make a dent in the surface to prevent the drill bit from drifting.
  • Drill holes for the anchor - Use a hammer drill and the appropriate masonry bit to make a hole for the anchor. Follow the instructions for drilling the hole from the anchor manufacturer.
  • Remove dust from holes - Use a air hose or vaccum cleaner to get the debris out of the holes.
  • Attach flanges with anchors - How you will do this depends on anchor style. But if you use hammer-in anchors, then put a nut on the end of the threads to protect the threads while you hammer the anchor into place.
  • Cut off excess bolt - If you have excess bolt that is exposed after tightening the anchors, use a hack saw to remove the excess.

Anchoring to wood

  • Align flange - Set the base flanges where they need to go and mark the holes with a marker.
  • Drill pilot holes - Drill a pilot hole appropriate for the size lag screw that you are using.
  • Attach flange with screws - Use a socket set to screw the lag screw into place.

How do I mount wall railing brackets?

  • Align bracket and mark holes - Begin by placing the bracket against the wall and marking the holes.
  • Drill pilot holes - Drill a Pilot hole for the screws that will be used to attach the brackets. A hammer drill will be required if you are drilling into concrete or masonry.
  • Attach brackets to wall - Attach the brackets with the appropriate kind of screw for the material that you are anchoring into.

How do I attach the uprights?

In most cases this is as simple as slipping the upright into the base flange and tightening the set screws in the fittings. Use a level to ensure that the post is plumb.

How do I attach brackets to the uprights?

This will be different for each kind of railing. The key here is not to attach the fitting too tightly. Attach the bracket or fitting just enough, so that adjustments can be made. You will probably not want to make your final tightening until after the railing has been attached.

How do I attach the railing to brackets?

When it comes to the differences in the handrail kits, attaching the rail to the handrail brackets is where there is the most diversity. Some railings will be much easier to attach than others.

  • Attaching directly to the fitting - Some railings were meant to slip through a hole in a fitting. If this is case, then the job is easy! Simply slip the tube through the hole in the fitting and tighten down the set screw.
  • Drilling into tube - Some railing brackets are designed to connect to the tube with screws. If this is the case, then make pilot holes with a drill before attempting to screw into the tube. Even if your screws are "self-drilling" we recommend making a pilot hole. Pilot holes can be made by aligning the grab rail on the brackets and using a marker to mark each hole. Once the hole is marked, take the railing off the brackets and pre-drill the holes in a stable location. After you have made the pilot holes, set the railing on the brackets and attach with the appropriate screws.

How do I tap in the tube caps?

Once your entire handrail is assembled, you'll want to tap the tube caps into any exposed ends of the rails and posts. It is best to do this with a rubber mallet. If you don't have a rubber mallet, then cover the cap with a piece of cardboard to protect the metal from scratches while you tap it in with a standard hammer.

Additional Information

Dimensional Weight (kgs) N/A
Brand Kee Klamp
Installation Difficulty Easy - Tube drilling required. Tube cutting possibly required.
Handrail Type Smooth - Fittings do not wrap around the grab rail.
Rali End Open Ended
Mounting angle Any Angle
Tube Drilling Required? Yes
Tube Cutting Required? No
Mounting Style Wall Flange
