Variable angle offset handrail kit - Floor mounted (SR-518)

As low as: ex VAT £195.66 inc VAT £234.79

Configuration

As low as: ex VAT £195.66 inc VAT £234.79

Handrail height: approx 1 m

Ships in
2-3 days

Price as configured: ex VAT £0.00 inc VAT £0.00

plus minus
Model: sr-518uk

Product Description

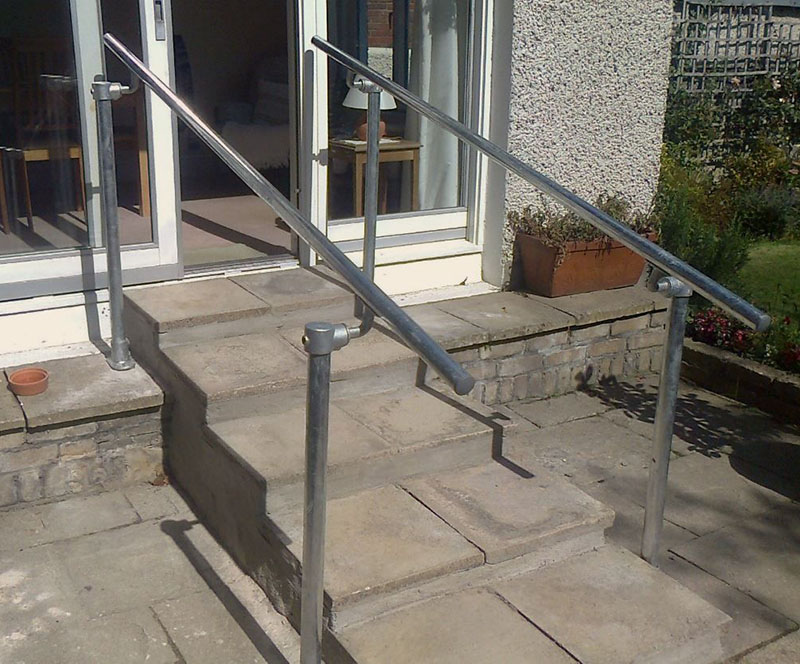

The SR-518 from Simplified Building is a floor mounted handrail kit that can be arranged at any angle and is ideal for use on stairs, ramps, or flat surfaces. The SR-510 handrail is sturdier than our SR-C50 handrail, this kit creates a smooth, continuous rail and is perfect for DDA accessibility rails. The grab rail connects to the bracket using screws, and requires minor drilling into the tube. This handrail kit is essential for keeping a safe home and workplace while also being a stylish extension of your environment.

A handrail kit suitable for any angle

Designed for stability to give you the utmost confidence, this adaptable galvanised handrail kit can be mounted on stair steps, ramps, or flat surfaces. With our unique fittings, the handail can be set at any angle and comes in a silver galvanised steel finish.

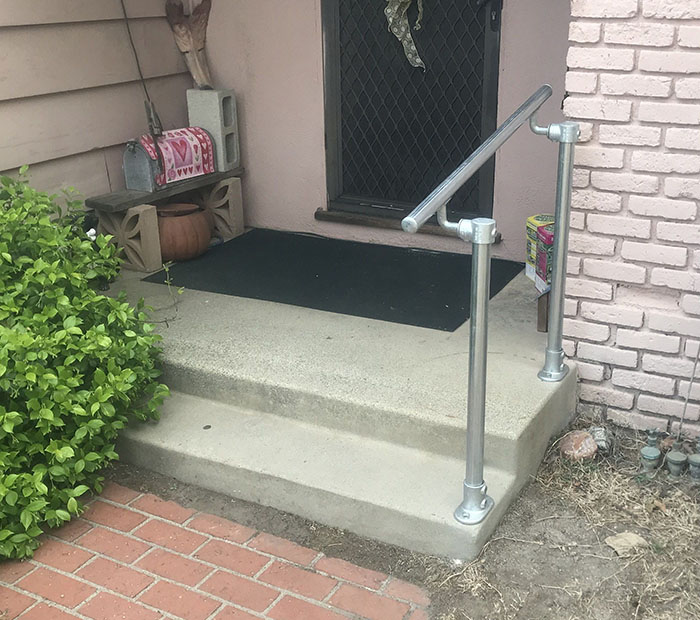

handrail kit on two steps for outdoor use

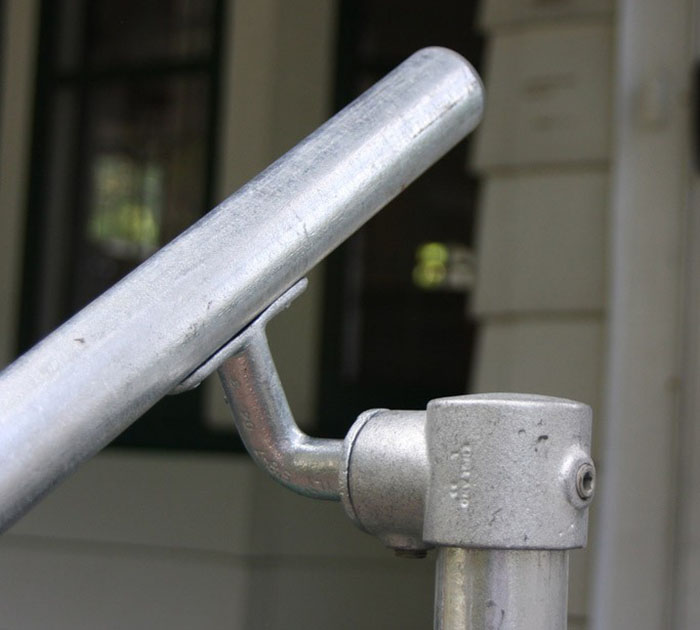

adjustable bracket for handrails

A DDA compatible

This handrail uses Kee Klamp fittings, specifically designed for accessibility handrails. The grabrail is placed on top of the fittings rather than sliding through them, creating a smooth, uninterrupted surface. This handrail kit's true advantage is the ability to angle the brackets to accommodate the slop of almost any stair or ramp.

Perfect for outdoor use

Crafted with industrial-grade galvanised steel tube and hot-dip Kee Access fittings, this handrail kit is prepared to withstand even the most severe weather conditions without corrosion. This galvanised steel railing ensures a robust surface to hold onto when you venture out into your garden or exit your home.

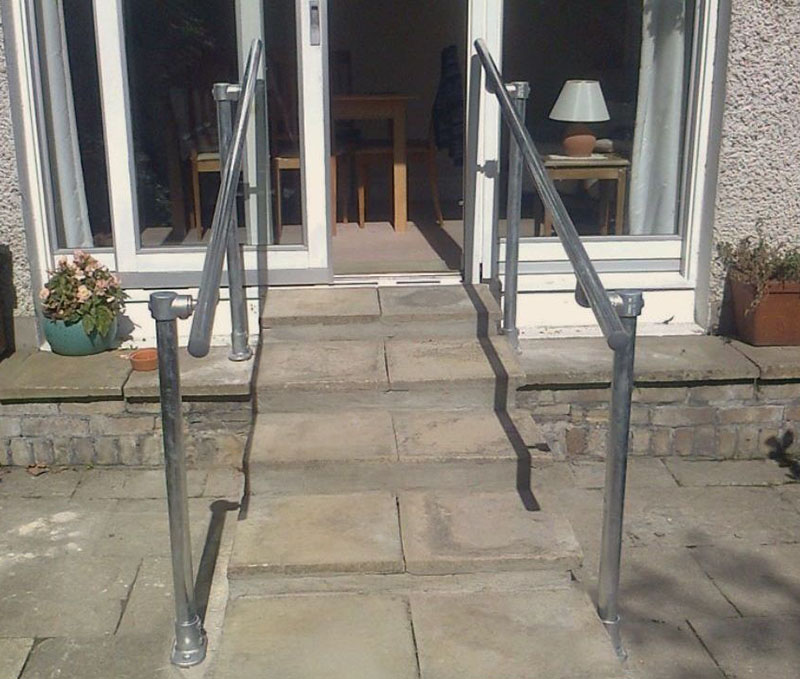

handrails outside the house

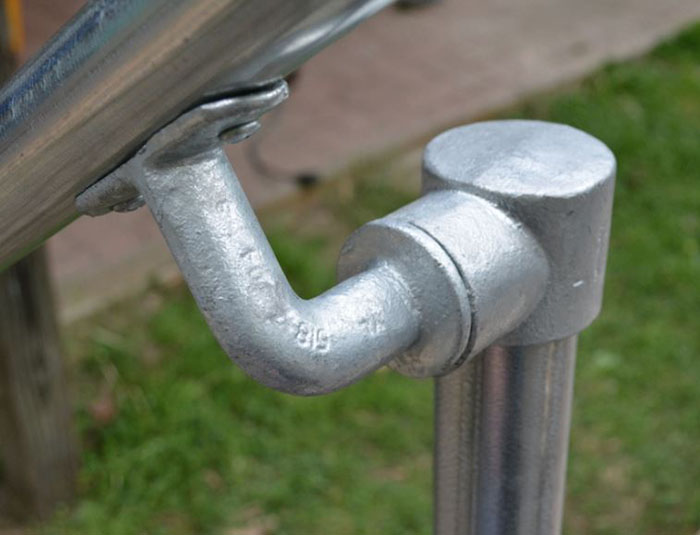

sturdy fittings and tube for handrails

Sturdy material, even sturdier handrails

Thanks to our industrial strength tubes and fittings, this galvanised rail is created to last year without rusting or bending, and doesn't require regular replacements. Once installed, it's there for whenever you need it.

Quick and easy installation

The SR-518 from Simplified Building delivers an easy installation process. The fittings are attached to the tube with an Allen Key - which is included in the kit, and the grab rail connects to the 518 bracket using self-tapping screws - which are also available to purchase on our website.

quick to install handrail kit
screws and bolts for handrail kit

All fixings included

Our floor-mounted handrails come with an assortment of screws and bolts to assist in installing the rail onto concrete, brick or wooden surfaces. Our handrail kit includes fixing for a handrail with 2 uprights. Please note: if you plan on fixing the rail onto other materials, then the fixing pack may not be suitable. In this case, seek advice from our safety experts and contact us today.

Here are the fittings you will get:

  • 4 x Coach screws - (M12 x 65mm) For connecting the flanges to wood. Use 2 screws per flange.
  • 4 x Sleeve anchors - (M12 x 75mm) For connecting the flanges to concrete or brick. Use 2 screws per flange.
  • 4 x Self-tapping screws - (5.5 x 25mm) For connecting the grab rail to 518 or 570 fittings. Use 2 screws per fitting. Depending on the kit you choose, the self-tapping screws might not be necessary

Note: If you plan on fixing the rail onto any other material, then the Fixings pack will not be suitable for your application. Please ask your local DIY store for a suitable fixing alternative.

See our recommendations for fixing a handrail onto a surface.

Also available in a black finish

The SR-518 handrail is available in a powder-coated black finish too! Measuring 1.5m in length, the black rail kit includes all the tube, fittings and fixings to help you create a stylish structure for your home or garden.

Buy the black handrail version

black handrail kit for stairs
custom adjustable handrail kit for your garden

Not the handrail you are looking for?

Let our team help you design a rail that suits your requirements! We use galvanised steel or aluminium uprights to build sturdy rails that will help you gain access to your home or garden. Just get in touch with our team!

Kit contents

The SR-518 handrail kit includes all the tube and fittings you require to put the rail together. An allen key is also included with the kit. Fixings (screws and bolt) are not provided.

Size 8 - 48.3 O/D Galvanised Tube
Size 8 - 48.3 O/D Galvanised Tube
Uprights height: 1m Qty: 2
Size 7 - (42.4mm O/D) Galvanised Tube
Size 7 - (42.4mm O/D) Galvanised Tube
Custom length grab rail Qty: 1
10-840C - Single Handrail Socket
10-840C - Single Handrail Socket
Qty: 2
84-7 - Malleable Plug, 32mm (1-1/4")
84-7 - Malleable Plug, 32mm (1-1/4")
Qty: 2
518-7 - Handrail Bracket
518-7 - Handrail Bracket
Qty: 2
62-8 - Standard Railing Flange, 40mm (1-1/2")
62-8 - Standard Railing Flange, 40mm (1-1/2")
Qty: 2
4 coach screws, 4 sleeve anchors, and 4 self-tapping screws
4 coach screws, 4 sleeve anchors, and 4 self-tapping screws
Qty: 1

What you need to know

How do I measure correctly?

Remember what your Dad told you? 'Measure Twice, Cut Once' You know the the phrase!

Figuring out the measurements for your handrail requires some attention to detail. There are two ways to figure it out the dimension for your grab rail and how you do it probably depends on how much you like maths.

This simple way to do this is to have someone stand at the bottom of the steps holding the end of the measuring tape. Walk to the top of the stairs while each of you hold the measuring tape 1m off the ground. Record the length when you have positioned the ends where you want the rail to begin and end.

The mathematical way of calculating would be to measure the rise and run of the steps and then calculate the length of the railing by the following formula:

Railing Length = √ height2 + length2

The square root of the height squared plus the length squared will give you the proper length of your rail.

What sort of prepping do I need to do?

Whether you are mounting to the wall or to ground, be sure that the area is cleaned so that it can receive the base flange or railing bracket without obstruction.

What hardware do I need to install this rail?

What hardware to use when installing a Kee Klamp handrail

For installing this rail, you will need the following additional items (included with the kit):

  • For mounting the feet:
    • Into brick or concrete: 4 x Sleeve Anchors
    • Into wood: 4 x Coach screws
  • For attaching the rail to the uprights: Self-tapping screws

Download the 'Hardware instructions sheet' for more information

How do I install the SR-518 handrail?

Step-by-step instructions

Recommended tools

  • Allen key (included with the handrail kits)
  • Rubber mallet / Hammer (for plugs)
  • Drill / Hammer drill
  • Wrench

Installation tips

  • Confirm that you have all required parts.
  • When installing plugs, place rag or cardboard over plug and gently hammer into place.
  • If installing into concrete or brick, vacuum out debris from drilled out holes before inserting sleeve anchors.
  • If you plan on painting your rail, do so before assembling.

Step by step instructions

  • Insert posts into 62-8’s. Tighten set screws loosely.
  • Line up assembled posts to desired location. Test grab bar with posts, then mark holes for the 62-8’s.
  • Disassemble the posts and secure 62-8’s to surface.
  • Insert posts into 62-8’s and add socket of 10-840C to top of posts. Insert 518’s in 10-840C’s. Tighten set screws loosely.
  • Line up grab rail at desired location. Mark and drill pilot holes for securing grab rail to 518’s.
  • Attach grab rail with self-tapping screws (available as an add-on for the kit) and adjust as needed. Tighten set screws once complete.
  • Cover plugs with a rag or cardboard and hammer into place.

How do I mount base flanges?

Anchoring to concrete or masonry

  • Align flange and mark holes - Set the base flanges where they need to go and mark the holes with a marker.
  • Dimple holes with a nail set - Before drilling, make a dent in the surface to prevent the drill bit from drifting.
  • Drill holes for the anchor - Use a hammer drill and the appropriate masonry bit to make a hole for the anchor. Follow the instructions for drilling the hole from the anchor manufacturer.
  • Remove dust from holes - Use a air hose or vaccum cleaner to get the debris out of the holes.
  • Attach flanges with anchors - How you will do this depends on anchor style. But if you use hammer-in anchors, then put a nut on the end of the threads to protect the threads while you hammer the anchor into place.
  • Cut off excess bolt - If you have excess bolt that is exposed after tightening the anchors, use a hack saw to remove the excess.

Anchoring to wood

  • Align flange - Set the base flanges where they need to go and mark the holes with a marker.
  • Drill pilot holes - Drill a pilot hole appropriate for the size lag screw that you are using.
  • Attach flange with screws - Use a socket set to screw the lag screw into place.

How do I mount wall railing brackets?

  • Align bracket and mark holes - Begin by placing the bracket against the wall and marking the holes.
  • Drill pilot holes - Drill a Pilot hole for the screws that will be used to attach the brackets. A hammer drill will be required if you are drilling into concrete or masonry.
  • Attach brackets to wall - Attach the brackets with the appropriate kind of screw for the material that you are anchoring into.

How do I attach the uprights?

In most cases this is as simple as slipping the upright into the base flange and tightening the set screws in the fittings. Use a level to ensure that the post is plumb.

How do I attach brackets to the uprights?

This will be different for each kind of railing. The key here is not to attach the fitting too tightly. Attach the bracket or fitting just enough, so that adjustments can be made. You will probably not want to make your final tightening until after the railing has been attached.

How do I attach the railing to brackets?

When it comes to the differences in the handrail kits, attaching the rail to the handrail brackets is where there is the most diversity. Some railings will be much easier to attach than others.

  • Attaching directly to the fitting - Some railings were meant to slip through a hole in a fitting. If this is case, then the job is easy! Simply slip the tube through the hole in the fitting and tighten down the set screw.
  • Drilling into tube - Some railing brackets are designed to connect to the tube with screws. If this is the case, then make pilot holes with a drill before attempting to screw into the tube. Even if your screws are "self-drilling" we recommend making a pilot hole. Pilot holes can be made by aligning the grab rail on the brackets and using a marker to mark each hole. Once the hole is marked, take the railing off the brackets and pre-drill the holes in a stable location. After you have made the pilot holes, set the railing on the brackets and attach with the appropriate screws.

How do I tap in the tube caps?

Once your entire handrail is assembled, you'll want to tap the tube caps into any exposed ends of the rails and posts. It is best to do this with a rubber mallet. If you don't have a rubber mallet, then cover the cap with a piece of cardboard to protect the metal from scratches while you tap it in with a standard hammer.

Additional Information

Dimensional Weight (kgs) N/A
Brand Kee Klamp
Installation Difficulty Easy - Tube drilling required. Tube cutting possibly required.
Handrail Type Smooth - Fittings do not wrap around the grab rail.
Rali End Open Ended
Mounting angle Any Angle
Tube Drilling Required? Yes
Tube Cutting Required? Maybe
Mounting Style Base Flange
Metal Steel
