M20 Size 2 BoxBolt (Fixing Range 35-72mm)

Select Models

Your Price Model Finish Qty
ex VAT £12.63 inc VAT £15.16

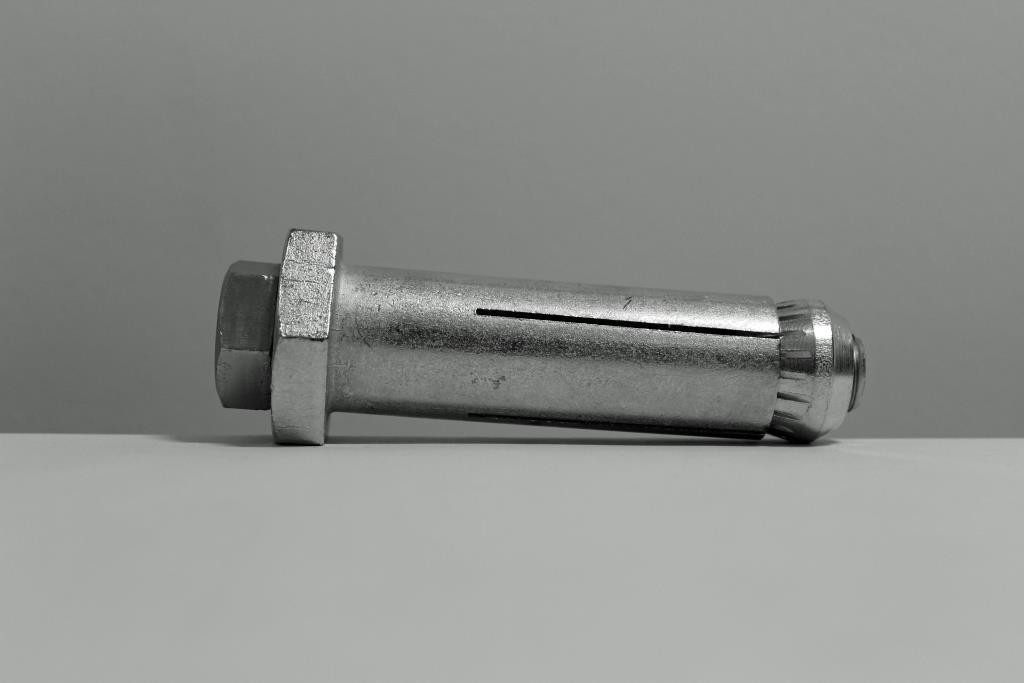

BQ2Z20 Zinc Plated Steel
plus minus
ex VAT £13.61 inc VAT £16.33

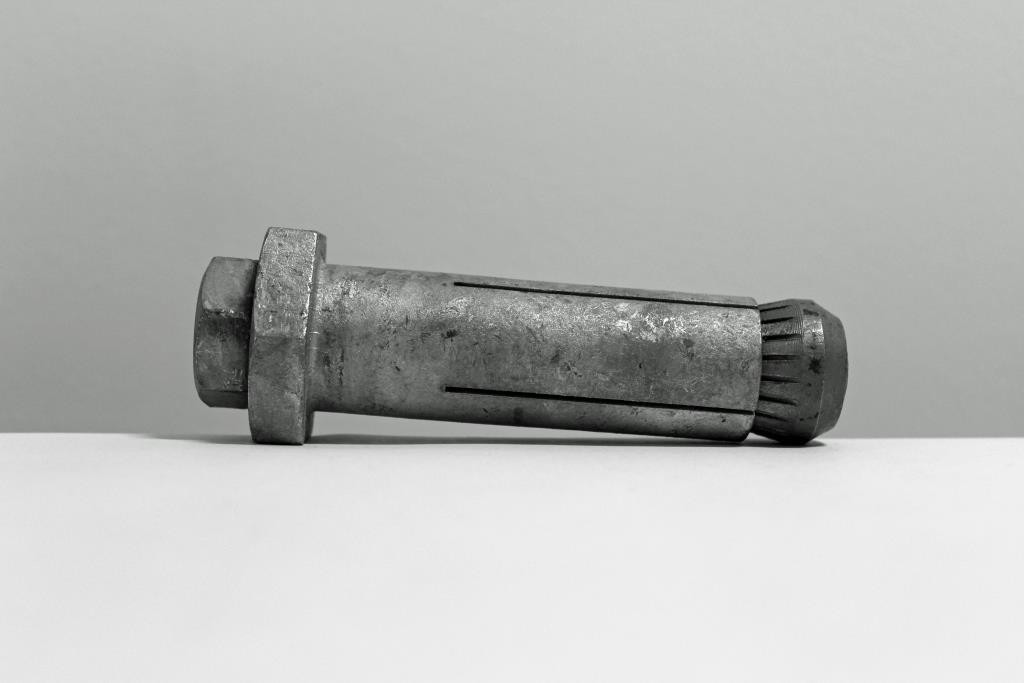

BQ2G20 Hot Dip Galvanized Steel
plus minus
Model: BQ2X20

Product Description

BOXBOLT PRICE DISCOUNTS available on bulk orders:

  • 100 - 250 units - 2% off
  • 251 - 499 units - 4% off
  • 500+ units - 6% off

All our BoxBolt products are CE marked.

M20 Boxbolt™ is used for steel to steel connections clamping thickness between 35-72mm thickness.

BoxBolt™ is suitable for use with rectangular, square and circular sections, or other types of steelwork where access is restricted to one side only.

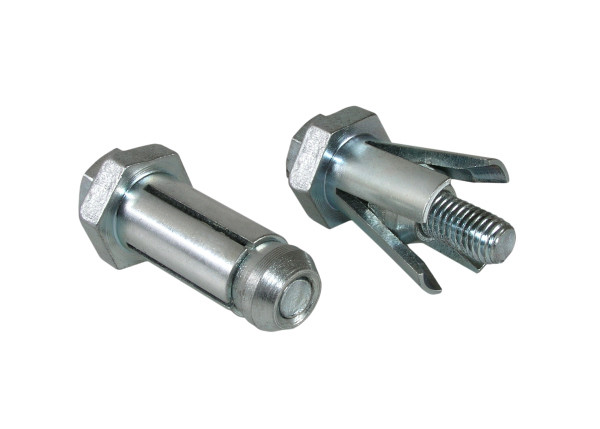

BoxBolt™ is hexagonal. This allows it to be held in position with an open ended wrench while a torque wrench is used to tighten the core bolt. As the core bolt is tightened the threaded wedge is drawn up inside the body, the fins expand, and a secure connection is made. To reduce installation time, a one piece accessory called the BoxSok™ can be used to attach to most air and power tools.

Additional Information

Brand Box Bolt
Bolt Size Size 2
Hole Diameter 1-3/8"
Typically ships in N/A
